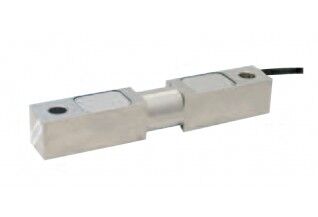

MLP24 series with steel alloy or optionally stainless steel material is a rugged and accurate load cell suitable for tension-compression load measurement. This double ended shear beam load cell offers great flexibility and reliability for a wide range of applications with highly competitive pricing.
MLP24 is available in standard ranges from 0.5t to 35t with an output of mV/V. The standard precision is 0.05% FS. The robust construction of MLP24 with its high performance makes it ideal for demanding long term applications.
| Standard Measurement Range | 500kg, 1t, 2t, 3t, 6t, 8t, 10t, 15t, 20t, 35t, Any other non-standard range |
|---|---|
| Output Signal | 3mv/V |
| Accuracy (combined LRH) | 0.05% FS |
| Creep | ±0.016% FS / 30min |
| Overload Rating | 120% FS |
| Zero unbalance | ±1% FS |
| Protection Level | IP67 |
| Compensated Temp. Range | -10 to 40°C |
| Operating Temp. Range | -35 to +65°C |
| Temp. Coefficient of Zero | 0.011% FS /10°C |
| Temp. Coefficient of Span | 0.019% FS /10°C |
| Input Resistance | 700±7Ω |
| Output Resistance | 703±4Ω |
| Insulation resistance | ≥5000MΩ @ 50VDC |
| Electric Connection | 6m cable |
