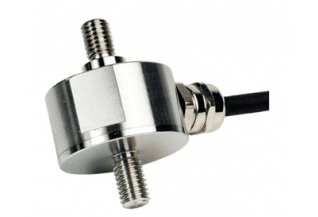

MLT61 miniature load cell with steel alloy material is a rugged and accurate tension-compression load cell suitable for load measurement in applications with limitation in size. This miniature force sensor offers great flexibility and reliability for a wide range of applications with highly competitive pricing. MLT61 is available in standard ranges from 0-50kg to 0-1000kg with an output of mV/V. The robust construction of MLT61 with precision of 0.5% FS makes it ideal for demanding long term applications in monitoring, robotics, machinery and weighing systems.
Get A Quote| Standard Measurement Range | 50kg, 100kg, 200kg, 300kg, 500kg, 750kg, 1t |
|---|---|
| Output Signal | 1.5~2 mV/V |
| Accuracy (combined LRH) | 0.5% FS |
| Creep | ±0.1% FS / 30min |
| Overload Rating | 150% FS |
| Zero unbalance | ±2% FS |
| Protection Level | IP65 |
| Compensated Temp. Range | -10 to 60°C |
| Operating Temp. Range | -20 to +80°C |
| Temp. Coefficient of Zero | 0.05% FS /10°C |
| Temp. Coefficient of Span | 0.05% FS /10°C |
| Input Resistance | 750±10Ω |
| Output Resistance | 700±3Ω |
| Insulation resistance | ≥5000MΩ @ 50VDC |
| Electric Connection | 3m cable |
Compact size (Φ34mm)
Wide Load Measurement Range of 0 to 1000kg
Robust Construction
Offers High Linearity of 0.5%
Force test instruments
Lifting hook scales
Cable tension force monitoring
Durability test benches for welding and joins
