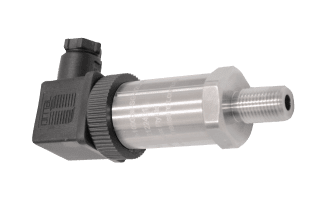

    MRS22

    Strain Gauge Pressure Transmitter High Pressure

    MRS22 series with 17-4PH diaphragm is a rugged strain gauge based pressure transducer suitable for
    harsh environments. The strain gauge design of this pressure transmitter offers great flexibility and
    reliability for a wide range of applications with very competitive pricing.
    MRS22 comes in a range from 800bar to 5000bar Full Scale Sealed Gauge with an output of mA or V. It
    is suitable for pressure measurement of gases & liquids compatible with stainless steel 17-4PH. While
    the standard Precision is 0.5% FS, you can optionally get a precision of 0.25% FS and 0.1% FS. It finds
    applications in hydraulic and pneumatic systems among many others.
    The robust construction of MRS22 with its high performance makes it ideal for demanding long term
    applications.
    Get A Quote
    • Technical Specification
    • Features
    • Applications
    Technology Strain Gauge
    Type Pressure Transmitter
    Standard Measurement Range (bar) 800, 1000, 1500, 2000, 3000, 4000, 5000
    Purpose and Application General Purpose, High Pressure Range
    Accuracy (combined LRH) 0.1% FS, 0.25% FS, 0.5% FS
    Output Signal 4-20mA, 0-5VDC, 0-10VDC, 1-5VDC
    Pressure Reference Sealed to 1 bar
    Process Connection G1/4(¼” BSPP male)
    Electric Connection No
    Protection Level IP67, IP68 (with cable connection)
    Overload Rating 150%
    Long Term Stability <0.2% FS/year
    Diaphragm Material Stainless Steel
    Compensated Temp. Range 0 to 60°C
    Operating Temp. Range -20 to +80°C
    Temp. Coefficient of Zero 0.03% FS /°C
    Temp. Coefficient of Span 0.03% FS /°C
    Input Resistance No
    Output Resistance No
    Insulation resistance 100MΩ @ 50VDC
    Zero offset No

    High Measuring Accuracy
    Pressure Measurement Range of 800 to 5000bar
    Compact and Rugged Model
    Wide Range of Media Compatibility
    Low Static and Thermal Errors
    Reverse polarity and transient current protected

    General industrial applications
    Pneumatics
    Open cut mining
    Data logging
    Off road Hydrostatic systems
    Hydraulic systems
    Injection mould equipment
    Internal combustion engine
    pipeline Construction
