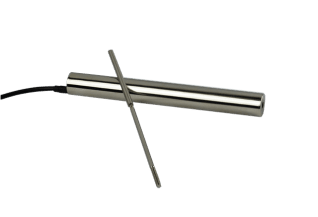

MDL41 series with stainless steel sensor rod is a rugged linear variable differential transformer (LVDT) technology based displacement sensor with hermitically sealed integrated circuit (IP67) for harsh dynamic environments. This compact sensor offers great flexibility and reliability for a wide range of applications with highly competitive pricing.
MDL41 is available in displacement ranges from 2.5 to 500mm with an output of mA or V without requirement of any additional signal conditioner (digital and wireless outputs are available as well, for high quantity applications). It is suitable for displacement measurement for industrial applications that demand high accuracy. While the standard Precision is 0.5% FS, you can optionally get a precision of 0.25% FS. The robust construction of MDL41 with its high performance makes it ideal for demanding long term industrial applications such as tolerance control systems and automation systems. MDL41 is equipped with extension rod with flexible thread size and length based on your request. Non-conductive mounting block is optionally available for fast and easy installation.
Get A Quote| Standard Measurement Range (mm) | 2.5, 5, 10, 15, 25, 50, 100, 250, 500 |
|---|---|
| Accuracy (combined LRH) | 0.25% FS, 0.5% FS |
| Output Signal | 4-20mA, 0-5VDC, 0-10VDC, 0.5-4.5V, Others |
| Protection Level | IP67 |
| Operating Temp. Range | -20 to +85°C |
| Temp. Coefficient of Span | 0.025% FS /°C |
| Temp. Coefficient of Zero | 0.01% FS/°C |
| Electric Connection | 1m cable |
