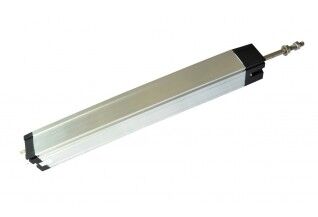

MDP43 series with threaded end for easy screw connection is a rugged potentiometer based displacement sensor suitable for static measurement in harsh environments. This compact displacement sensor offers great flexibility and reliability for a wide range of applications with highly competitive pricing.
MDP43 is available in measuring ranges from 75 to 1250mm with a Voltage output (relative to supplied input voltage). It is suitable for industrial measurements where screw mounting is required. Standard Nonlinearity is ±0.1% FS for range of 70-150mm and ±0.05% FS for range of 150-1250mm.
The robust construction of MDP43 with its high performance makes it ideal for demanding long term applications.
Get A Quote| Standard Measurement Range (mm) | 75, 100, 125, 150, 200, 250, 300, 400, 600, 500, 1000, 1250, Any other non-standard range |
|---|---|
| Accuracy (combined LRH) | 0.1% FS |
| Output Signal | Potentiometric (Nearly same as input voltage) |
| Protection Level | IP67 |
| Operating Temp. Range | -60 to +100°C |
| Temp. Coefficient of Span | 1.5ppm FS/°C |
| Temp. Coefficient of Zero | 1.5ppm FS/°C |
| Electric Connection | DIN 43650 connector |
