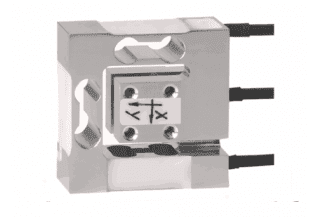

MLD66 is suitable for measuring force in 3 mutually perpendicular axes and each axis provides an output of 1mV/V and requires no mathematical manipulation. The standard precision is 1% FS. The robust construction of MLD66 with its high performance makes it ideal for demanding long-term applications.
| Standard Measurement Range | 5kg, 10kg, 20kg, 30kg, 50kg |
|---|---|
| Output Signal | 1-1.5 mV/V |
| Accuracy (combined LRH) | 1% FS |
| Creep | ±0.05% FS / 30min |
| Overload Rating | 200% FS |
| Zero unbalance | ±2% FS |
| Protection Level | IP65 |
| Compensated Temp. Range | -10 to 60°C |
| Operating Temp. Range | -20 to +80°C |
| Temp. Coefficient of Zero | 0.05% FS /10°C |
| Temp. Coefficient of Span | 0.05% FS /10°C |
| Input Resistance | No |
| Output Resistance | No |
| Insulation resistance | > 5000MΩ @ 50VDC |
| Electric Connection | 3m cable |
Compact size(40mm*40mm*19.5mm)
Load Measurement Range of 5 – 50kg
Low cross axis error in three dimensions
Milling and grinding machine
Wind tunnel tests
Research and product development
Robotic polishing
Robot performance monitoring
Overload protection in mechanical arms and joints
