    MLR62

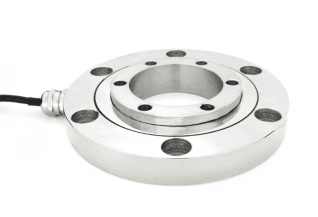

    Low Profile Centre Hole Load Cell

    MLR62 is low profile high accuracy centre hole force sensor suitable for industrial applications with mounting space constraint. This shear web strain gauge-based load cell is ideal for compression load measurement in civil structures and industrial machines, where durability and repeatability are critical. The standard Accuracy of MLR62 is 0.1% FS.
    Get A Quote
    • Technical Specification
    • Features
    • Applications
    Standard Measurement Range 500kg, 1t, 2t, 3t, 4t, 5t
    Output Signal 2mV/V
    Accuracy (combined LRH) 0.1% FS
    Creep ±0.1% FS / 30min
    Overload Rating 150% FS
    Zero unbalance ±2% FS
    Protection Level IP65
    Compensated Temp. Range -10 to 60°C
    Operating Temp. Range -20 to +80°C
    Temp. Coefficient of Zero 0.05% FS /10°C
    Temp. Coefficient of Span 0.05% FS /10°C
    Input Resistance 750±10Ω
    Output Resistance 700±3Ω
    Insulation resistance ≥5000MΩ @ 50VDC
    Electric Connection 3m cable

    Very Low profile of 20mm for Load Range of 0 to 5t
    Compact and robust construction
    Non-linearity of 0.1% FS

    Pile pressure monitoring
    Hot pressing and Extruding machines Mining Constructions
    Force detection in assembly systems
    Mining and construction structure monitoring
    Over load protection in mechanical arms and joints
