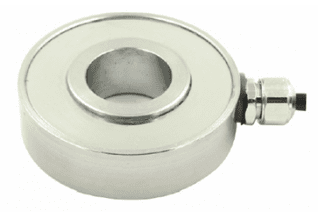

MLR63 is a low profile ring type (Aka Thru-hole/ Donut type) load cell suitable for industrial applications such as bolt force measurements. This ring type load cell is ideal for the measurement of compressive forces which requires a central aperture for accommodating application parts or bolts. The standard accuracy is 0.25% FS and dimensions can be customized as per the client’s requirements.
| Standard Measurement Range | 10kg, 20kg, 50kg, 100kg, 200kg, 500kg, 1t, 2t |
|---|---|
| Output Signal | 1.5mV/V |
| Accuracy (combined LRH) | 0.25% FS |
| Creep | ±0.1% FS / 30min |
| Overload Rating | 150% FS |
| Zero unbalance | No |
| Protection Level | IP66 |
| Compensated Temp. Range | -10 to 60°C |
| Operating Temp. Range | -20 to +80°C |
| Temp. Coefficient of Zero | 0.05% FS /10°C |
| Temp. Coefficient of Span | 0.05% FS /10°C |
| Input Resistance | 380±5Ω, 1000±5Ω |
| Output Resistance | 350±10Ω |
| Insulation resistance | 500MΩ @ 100VDC |
| Electric Connection | 3m cable |
Very Low profile of 15mm
Load Range of 10kg to 2000kg
High dynamic response frequency
Stainless steel material
Clamping Forces
Press fitting
Bolt force Measurement
In-Line compression application
Rolling mill systems
Overload protection in mechanical arms and joints
