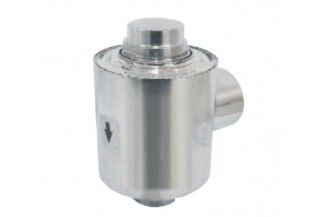

MLC21 series with Stainless Steel material is a rugged and accurate load cell suitable for compression load measurement. This column compression load cell offers great flexibility and reliability for a wide range of applications with highly competitive pricing. Installation of this load cell is easy and it is water and oil-proof.
MLC21 is available in standard ranges from 10t to 50t with an output of mV/V. The standard Precision is 0.05% FS. The robust construction of MLC21 with its high performance makes it ideal for demanding long term applications.
| Standard Measurement Range | 10t, 20t, 30t, 40t, 50t, Any other non-standard range |
|---|---|
| Output Signal | 2mV/V |
| Accuracy (combined LRH) | 0.05% FS |
| Creep | ±0.02% FS / 30min |
| Overload Rating | 150% FS |
| Zero unbalance | ±1% FS |
| Protection Level | IP66, IP67 |
| Compensated Temp. Range | -10 to 55°C |
| Operating Temp. Range | -35 to +80°C |
| Temp. Coefficient of Zero | 0.03% FS /10°C |
| Temp. Coefficient of Span | 0.02% FS /10°C |
| Input Resistance | 750±10Ω |
| Output Resistance | 700±10Ω |
| Insulation resistance | ≥5000MΩ @ 50VDC |
| Electric Connection | 10m cable |
