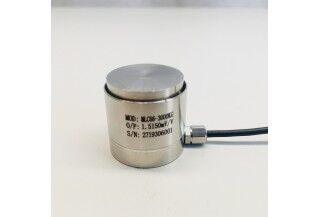

    MLC66

    Miniature Column Type Load Cell

    MLC66 series with Steel alloy material is a rugged and accurate compression load cell suitable for compression load measurement in applications with limitation in size. This miniature load cell offers great flexibility and reliability for a wide range of applications with highly competitive pricing. MLC66 is available in standard ranges from 0-1t to 0-15t (150kN) with an output of mV/V. The robust construction of MLC66 with a precision of 1% FS makes it ideal for demanding long-term applications in civil, construction, machinery, robotic and weighing systems.
    Get A Quote
    • Technical Specification
    • Features
    • Applications
    Standard Measurement Range 1t, 2t, 2.5t, 3t, 5t, 7.5t, 10t, 15t
    Output Signal 1.5~2 mV/V
    Accuracy (combined LRH) 1% FS
    Creep ±0.5% FS / 30m
    Overload Rating 120% FS
    Zero unbalance ±2% FS
    Protection Level IP65
    Compensated Temp. Range -10 to 60°C
    Operating Temp. Range -20 to +80°C
    Temp. Coefficient of Zero 0.5% FS /10°C
    Temp. Coefficient of Span 0.5% FS /10°C
    Input Resistance 350±5Ω
    Output Resistance 350±5Ω
    Insulation resistance ≥5000MΩ @ 50VDC
    Electric Connection 3m cable

    Miniature Size (13.4mm diameter)
    Wide Load Measurement Range of 0 to 15t
    Robust Construction

    Industrial Automation and Robotics
    Measuring and control systems
    Tank and hopper weighing
    Flat mounting weighing systems
