    MLW64

    MLW64

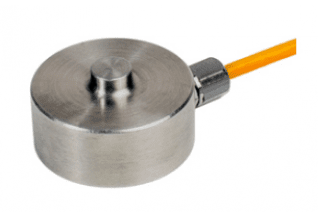

    Miniature Compression Load Cell
    MLW64 with Steel alloy material is a rugged and accurate load cell suitable for compression load measurement. This miniature load cell offers great flexibility and reliability for a wide range of applications with highly competitive pricing. MLW64 is available in standard ranges from 0 to 5kg up to 0-2000kg with an output of mV/V. Standard precision is 0.5% FS. The robust construction of MLW64 with its high performance makes it ideal for demanding long term applications.
    Get A Quote
    • Technical Specification
    • Features
    • Applications
    Standard Measurement Range 5kg, 10kg, 20kg, 50kg, 100kg, 200kg, 300kg, 500kg, 1t, 2t
    Output Signal 1-1.5 mV/V
    Accuracy (combined LRH) 0.5% FS
    Creep ±0.5% FS / 30m
    Overload Rating 120% FS
    Zero unbalance ±2% FS
    Protection Level IP65
    Compensated Temp. Range -10 to 60°C
    Operating Temp. Range -20 to +80°C
    Temp. Coefficient of Zero 0.5% FS /10°C
    Temp. Coefficient of Span 0.5% FS /10°C
    Input Resistance 350±5Ω
    Output Resistance 350±5Ω
    Insulation resistance ≥5000MΩ @ 50VDC
    Electric Connection 2m cable

    Compact size (Φ20mm)
    Load Measurement Range of 0-5kg to 0-2000kg
    Rugged Model Steel Alloy Material
    Very Competitive Price

    Industrial Automation and Robotics
    Precision mechanisms
    Measuring and control systems
    Universal testing machines
    Level and inventory measurement
    Flat mounting weighing systems
