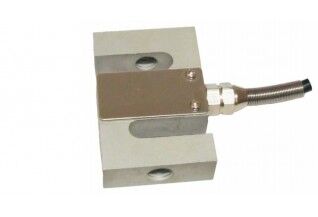

MLS24 series with Aluminium alloy material is a rugged and accurate load cell suitable for tension-compression load measurement. This S-Type load cell offers great flexibility and reliability for a wide range of applications with highly competitive pricing.
MLS24 is available in standard ranges from 20kg to 500kg with an output of mV/V. The standard Precision is 0.05% FS. The robust construction of MLS24 with its high performance makes it ideal for demanding long term applications.
| Standard Measurement Range | 20kg, 30kg, 50kg, 100kg, 200kg, 300kg, 500kg |
|---|---|
| Output Signal | 2mV/V |
| Accuracy (combined LRH) | 0.05% FS |
| Creep | ±0.05% FS / 30min |
| Overload Rating | 120% FS |
| Zero unbalance | ±1% FS |
| Protection Level | IP65 |
| Compensated Temp. Range | -10 to 55°C |
| Operating Temp. Range | -35 to +80°C |
| Temp. Coefficient of Zero | 0.03% FS /10°C |
| Temp. Coefficient of Span | 0.02% FS /10°C |
| Input Resistance | No |
| Output Resistance | No |
| Insulation resistance | ≥5000MΩ @ 50VDC |
| Electric Connection | 3m cable |
