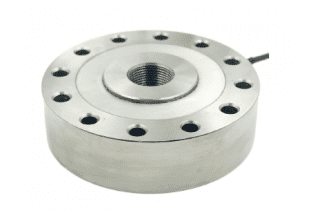

    Tension and Compression Load Cell

    MLW65 is a rugged and accurate load cell suitable for tension and compression load measurement. This load cell offers great flexibility and reliability for a wide range of applications with space constraint. MLW65 is available in standard ranges from 1 to 30 ton with an output of mV/V. Standard precision is 0.03% FS. The robust construction of MLW65 with its high performance makes it ideal for demanding long-term applications.
    Get A Quote
    • Technical Specification
    • Features
    • Applications
    Standard Measurement Range 1t, 2t, 3t, 5t, 10t, 15t, 20t, 25t, 30t
    Output Signal 3mv/V
    Accuracy (combined LRH) 0.03%FS
    Creep ±0.03% FS / 30min
    Overload Rating 150% FS
    Zero unbalance ±2% FS
    Protection Level IP67
    Compensated Temp. Range -10 to 40°C
    Operating Temp. Range -10 to +80°C
    Temp. Coefficient of Zero 0.02% FS /°C
    Temp. Coefficient of Span 0.02% FS /°C
    Input Resistance 770±10Ω
    Output Resistance 700±10Ω
    Insulation resistance ≥5000MΩ @ 50VDC
    Electric Connection 3m cable

    Can be used for tension and compression
    Load Measurement Range of 1 to 30-ton
    High accuracy of 0.03%FS and IP67 protection
    Very Competitive Price

    Industrial Automation
    Hopper Scales
    Universal testing machines
    Flat mounting weighing systems
