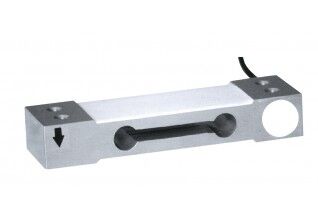

    MLA21

    Single Point Load Cell

    MLA21 series with Aluminium alloy material is a rugged and accurate load cell suitable for tension-compression load measurement. This single point load cell offers great flexibility and reliability for a wide range of applications with highly competitive pricing.

    MLA21 is available in standard ranges from 5kg to 80kg with an output of mV/V. The standard Precision is 0.05% FS.

    The robust construction of MLA21 with its high performance makes it ideal for demanding long term
    applications.

    Get A Quote
    • Technical Specification
    • Features
    • Applications
    Standard Measurement Range 2kg, 3kg, 4kg, 5kg, 8kg, 10kg, 30kg, 35kg, 40kg, 50kg, 60kg, 80kg
    Output Signal 2mV/V
    Accuracy (combined LRH) 0.05% FS
    Creep ±0.02% FS / 30min
    Overload Rating 150% FS
    Zero unbalance ±1% FS
    Protection Level IP65
    Compensated Temp. Range -10 to 40°C
    Operating Temp. Range -20 to +65°C
    Temp. Coefficient of Zero 20ppm FS /°C
    Temp. Coefficient of Span 20ppm FS/°C
    Input Resistance 400±10Ω/ 1065±15Ω
    Output Resistance 350±5Ω/ 1000±15Ω
    Insulation resistance > 5000MΩ @ 50VDC
    Electric Connection 0.3m cable
    • High Measuring Accuracy
    • Load Measurement Range of 5 – 80kg
    • Compact and Rugged Model
    • Anodized Aluminium Alloy Material
    • Silicon Rubber Sealing
    • Electronic scales
    • Bin and hopper weighing systems
    • Mechanical scale conversion
    • Hanging Scales
    • OEM scale construction
    • Level and inventory measurement
