    MLA66

    single point load cells
    MLA66
    single point load cells
    MLA66

    MLA66

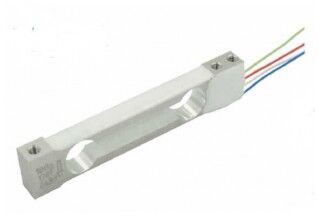

    Low Range Single Point Load Cell

    MLA66 series with Aluminium alloy material is a rugged and accurate load cell suitable for tension-compression load measurement. This single point load cell offers great flexibility and reliability for a wide range of applications with highly competitive pricing.
    MLA66 is available in standard ranges from 100 & 200 grams with an output of mV/V. The standard Precision is 0.015% FS. The robust construction of MLA66 with its high performance makes it ideal for demanding long-term applications.
    Get A Quote
    • Technical Specification
    • Features
    • Applications
    Standard Measurement Range 0.1kg, 0.2kg
    Output Signal 0.9 ± 0.1mV/V
    Accuracy (combined LRH) 0.01%FS
    Creep ±0.016% FS / 30min
    Overload Rating 150% FS
    Zero unbalance No
    Protection Level IP65
    Compensated Temp. Range -10 to 40°C
    Operating Temp. Range -20 to +55°C
    Temp. Coefficient of Zero 0.03% FS /10°C
    Temp. Coefficient of Span 0.02% FS /°C
    Input Resistance No
    Output Resistance No
    Insulation resistance > 5000MΩ @ 50VDC
    Electric Connection 4-wire

    High Measuring Accuracy (0.015%FS)
    Load Measurement Range of 100 & 200grams
    Compact and Rugged Model
    Anodized Aluminium Alloy Material
    Easy to install and IP65 protection

    Electronic Scales
    Bin and hopper weighing systems
    Mechanical scale conversion
    Hanging Scales
    OEM scale construction
    Level and inventory measurement
