| Technology | Piezo resistive |
|---|---|

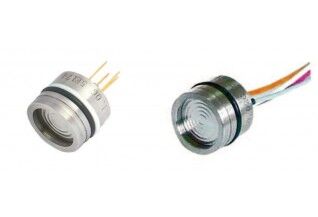

| Type | OEM Pressure Sensing Element |
| Standard Measurement Range (bar) | [-1/0], [-0.2/+0.2], 0.2, 1, 4, 6, 10, 16, 25, 50, 100, 400, 600, 1000, Other non standard range |
| Purpose and Application | General Purpose, Corrosive Media, Compact Size / Miniature, Low voltage Excitation |
| Accuracy (combined LRH) | 0.25% FS, 0.5% FS |
| Output Signal | ~ 70mV, ~ 40mV |
| Pressure Reference | Absolute (0 at vacuum), Sealed to 1 bar, Vented Gauge (0 at atmospheric pressure) |
| Process Connection | No Pressure Port, G1/4(¼” BSPP male), G1/2(½” BSPP male), Others |
| Electric Connection | 4-wire, 6 pin connection |
| Protection Level | No |
| Overload Rating | 150% |
| Long Term Stability | <0.2% FS/year |
| Diaphragm Material | Stainless Steel 316L, Hastelloy, Titanium |
| Compensated Temp. Range | 0 to 70°C |
| Operating Temp. Range | -20 to +80°C |
| Temp. Coefficient of Zero | 0.02% FS /°C |
| Temp. Coefficient of Span | 0.02% FS /°C |
| Input Resistance | 2-6kΩ |
| Output Resistance | No |
| Insulation resistance | 100MΩ @ 50VDC |
| Zero offset | ≤ ±3mV |
High Measuring Accuracy
Pressure Measurement Range of -1 to 1000bar
Compact and Rugged Model
Wide Range of Media Compatibility
Low Static and Thermal Errors
