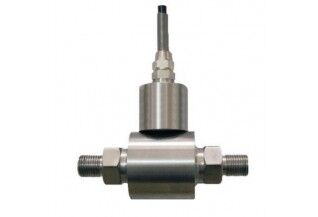

    MRD22

    Differential Pressure Transducer

    MRD22 series with SS316L diaphragm is a rugged silicon MEMS technology based differential pressure transducer suitable for harsh environments. This compact differential pressure transducer offers great flexibility and reliability for a wide range of applications with highly competitive pricing.
    MRD22 is available in pressure ranges from 0.2 to 35bar with an output of mV/V. It is suitable for pressure measurement of gases & liquids compatible with SS316L. While the standard Precision is
    0.5% FS, you can optionally get a precision of 0.25% FS. It finds applications in hydraulic and pneumatic systems among many others.
    The robust construction of MRD22 with its high performance makes it ideal for demanding long term applications.
    Get A Quote
    • Technical Specification
    • Features
    • Applications
    Technology Piezo resistive
    Type Differential Pressure Sensor
    Standard Measurement Range (bar) 0.2, 0.5, 1, 2, 5, 10, 20, 35
    Purpose and Application General Purpose
    Accuracy (combined LRH) 0.25% FS, 0.5% FS
    Output Signal ~ 70mV
    Pressure Reference Dif.: Differential
    Process Connection G1/4(¼” BSPP male), R1/4(¼” BSPT male) , NPT1/4(¼” NPT male) , Others
    Electric Connection 3m cable, DIN 43650 connector, Others
    Protection Level IP65, IP68 (with cable connection)
    Overload Rating 200%
    Long Term Stability <0.2% FS/year
    Diaphragm Material Stainless Steel 316L
    Compensated Temp. Range 0 to 60°C
    Operating Temp. Range -30 to +80°C
    Temp. Coefficient of Zero 0.03% FS /°C
    Temp. Coefficient of Span 0.02% FS /°C
    Input Resistance N/A
    Output Resistance N/A
    Insulation resistance 100MΩ @ 50VDC
    Zero offset ≤ ±3mV
    • High Measuring Accuracy
    • Differential Pressure Measurement
    • Range of 0.2 to 35bar
    • Compact and Rugged Model
    • Wide Range of Media Compatibility
    • Low Static and Thermal Errors
    • Hydraulic systems
    • Pump controls
    • Pneumatic systems
    • Manufacturing process controls
    • Fire control systems
    • Manufacturing automation
    • Hydrology research
    • Hydro balancing systems
