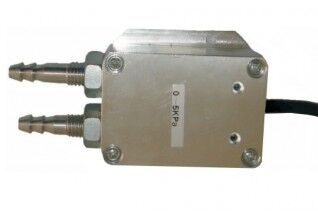

    MRD25

    Piezo-Resistive Silicon Differential Pressure Transducer

    MRD25 series is a rugged silicon piezo-resistive technology based differential pressure transducer suitable for pipe lines and process control systems. This compact differential pressure transducer offers great flexibility and reliability for a wide range of applications with highly competitive pricing.
    MRD25 is available in pressure ranges from 0.01 to 6bar with an output of mV/V. It is suitable for pressure measurement of non-corrosive and non-viscous liquids and gasses. While the standard
    Precision is 0.5% FS, you can optionally get a precision of 0.25% FS. It finds applications in hydraulic and pneumatic process control systems among many others.
    The robust construction of MRD25 with its high performance makes it ideal for demanding long term applications.
    Get A Quote
    • Technical Specification
    • Features
    • Applications
    Technology Piezo resistive
    Type Differential Pressure Sensor
    Standard Measurement Range (bar) 0.01, 0.02, 0.05, 0.1, 0.2, 0.5, 1, 2, 4, 6
    Purpose and Application General Purpose
    Accuracy (combined LRH) 0.25% FS, 0.5% FS
    Output Signal ~ 40mV
    Pressure Reference Dif.: Differential
    Process Connection Others
    Electric Connection 3m cable
    Protection Level IP65
    Overload Rating 300%
    Long Term Stability <0.2% FS/year
    Diaphragm Material Other
    Compensated Temp. Range 0 to 60°C
    Operating Temp. Range -20 to +80°C
    Temp. Coefficient of Zero 0.03% FS /°C
    Temp. Coefficient of Span 0.03% FS /°C
    Input Resistance N/A
    Output Resistance N/A
    Insulation resistance > 5000MΩ @ 50VDC
    Zero offset <±2% FS
    • High Measuring Accuracy
    • Differential Pressure Measurement
    • Range of 1 to 600kPa
    • Compact and Rugged Model
    • Wide Range of Media Compatibility
    • Low Static and Thermal Errors
    • Process industries
    • Pump controls
    • Pneumatic systems
    • Manufacturing process controls
    • Power plants
    • Manufacturing automation
    • Air supply systems in production lines
    • Mining industry
