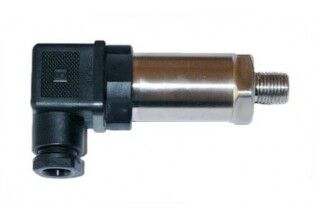

    Ceramic Diaphragm Pressure Transmitter

    MRC21 series with ceramic diaphragm is a high quality printed thick film ceramic pressure transmitter.
    This structure minimizes the influence of rapid or gradual temperature changes and offers great flexibility and reliability for a wide range of applications with highly competitive pricing.
    MRC21 is available in pressure ranges from 1 to 200bar with an output of mA or V. It is suitable for pressure measurement of gases & liquids compatible with ceramic. While the standard Precision is 0.5% FS, you can optionally get a precision of 0.25% FS. It finds wide range of applications in many industries.
    The robust construction of MRC21 with its high performance makes it ideal for demanding long term applications.
    Get A Quote
    • Technical Specification
    • Features
    • Applications
    Technology Strain Gauge
    Type Pressure Transmitter
    Standard Measurement Range (bar) 1, 2, 5, 10, 20, 50, 100
    Purpose and Application General Purpose, Corrosive Media
    Accuracy (combined LRH) 0.25% FS, 0.5% FS
    Output Signal 4-20mA, 0-5VDC, 0-10VDC, 1-5VDC
    Pressure Reference VG: Vented Gauge (0 at atmospheric pressure)
    Process Connection G1/4(¼” BSPP male), G1/2(½” BSPP male), R1/4(¼” BSPT male) , NPT1/4(¼” NPT male) , Others
    Electric Connection 3m cable, DIN 43650 connector, Others
    Protection Level IP67, IP68 (with cable connection)
    Overload Rating 150%
    Long Term Stability <0.2% FS/year
    Diaphragm Material Ceramic
    Compensated Temp. Range 0 to 70°C
    Operating Temp. Range -30 to +80°C
    Temp. Coefficient of Zero 0.03% FS /°C
    Temp. Coefficient of Span 0.03% FS /°C
    Input Resistance N/A
    Output Resistance N/A
    Insulation resistance 100MΩ @ 50VDC
    Zero offset <±2% FS
    • Well priced for OEM applications
    • High Measuring Accuracy
    • Pressure Measurement Range of 1 to 200bar
    • Wide Range of Media Compatibility
    • Low Static and Thermal Errors
    • Autoclave and other steam sterilizers
    • Agricultural chemical spray equipment
    • Aggressive fluid tank farms
    • Hydraulics Sub-sea survey equipment
    • Purging lines
    • Industrial washing equipment
    • Laboratory analysers
