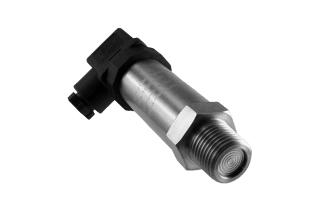

    MRF21

    Flush Diaphragm Piezo-Resistive Pressure Transmitter

    MRF21 series with SS316L flush membrane is a Piezo-resistive silicon technology based pressure transmitter. This compact pressure transmitter offers great flexibility and reliability for a wide range of
    applications in many industries such as food, beverage and pharmaceutical with competitive price.
    MRF21 is available in pressure ranges from -1 to 350bar with an output of mA or V. It is suitable for pressure measurement of gases & liquids compatible with SS316L. While the standard Precision is
    0.5% FS, you can optionally get a precision of 0.25% FS.
    The robust construction of MRF21 with its high performance makes it ideal for demanding long term applications.
    Get A Quote
    • Technical Specification
    • Features
    • Applications
    Technology Piezo resistive
    Type Pressure Transmitter
    Standard Measurement Range (bar) [-1/0], 0.5, 1, 2, 5, 10, 20, 50, 100, 200, 350
    Purpose and Application Flush Diaphragm
    Accuracy (combined LRH) 0.25% FS, 0.5% FS
    Output Signal 4-20mA, 0-5VDC, 0-10VDC, Others
    Pressure Reference Abs.: Absolute (0 at vacuum), SG: Sealed Gauge (0 at 1bar), VG: Vented Gauge (0 at atmospheric pressure)
    Process Connection R1/2(½”BSPT male), G1/2(½” BSPP male), Others
    Electric Connection 3m cable, DIN 43650 connector, Others
    Protection Level IP67, IP68 (with cable connection)
    Overload Rating 150%
    Long Term Stability <0.2% FS/year
    Diaphragm Material Stainless Steel 316L
    Compensated Temp. Range 0 to 70°C
    Operating Temp. Range -30 to +80°C
    Temp. Coefficient of Zero 0.03% FS /°C
    Temp. Coefficient of Span 0.03% FS /°C
    Input Resistance N/A
    Output Resistance N/A
    Insulation resistance 100MΩ @ 50VDC
    Zero offset No
    • Flush Diaphragm Model
    • Sanitary Fitting Available
    • High Measuring Accuracy
    • Pressure Measurement Range of -1 to 350bar
    • Wide Range of Media Compatibility
    • Low Static and Thermal Errors
    • Reverse polarity and transient current protected
    • Beverage machineries
    • Data logging
    • Pharmaceutical applications
    • Agricultural equipment
    • Industrial process control
    • Compressed air line
    • Food industry
