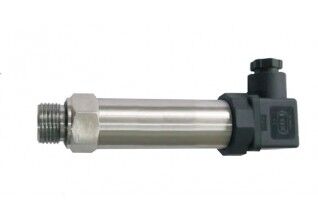

    MRQ22

    Pressure Temperature Transmitter

    MRQ22 series with the SS316L diaphragm is a rugged piezoresistive technology-based integrated pressure-temperature transmitter suitable for high-temperature media. This compact pressure transmitter offers great flexibility and reliability for a
    wide range of applications with highly competitive pricing. MRQ22 is available in pressure ranges from -1 to 1000bar with an output of mA or V and temperature range of -40°C up to 125°C. It is suitable for concurrent pressure and temperature measurement of
    gases & liquids compatible with stainless steel. While the standard precision is 1% FS, you can optionally
    get a precision of 0.5% FS or 0.25% FS. The robust construction of MRQ22 with its high performance makes it ideal for demanding long term
    applications.
    Get A Quote
    • Technical Specification
    • Features
    • Applications
    Technology Piezo resistive
    Type Pressure Transmitter
    Standard Measurement Range (bar) [-1/0], 10, 25, 50, 100, 200, 400, 800, 1000
    Purpose and Application High Temperature, Pressure – Temperature, High Pressure Range
    Accuracy (combined LRH) 0.1% FS, 0.25% FS, 0.5% FS
    Output Signal 4-20mA, 0-5VDC, 1-5VDC
    Pressure Reference Abs.: Absolute (0 at vacuum), SG: Sealed Gauge (0 at 1bar)
    Process Connection M22x1.5 (male), G1/2(½” BSPP male), NPT1/4(¼” NPT male) , Others
    Electric Connection 3m cable, DIN 43650 connector, Others
    Protection Level IP65, IP67, IP68 (with cable connection)
    Overload Rating 150%
    Long Term Stability No
    Diaphragm Material Stainless Steel 316L
    Compensated Temp. Range 0 to 70°C
    Operating Temp. Range -40 to +125°C
    Temp. Coefficient of Zero 0.025% FS /°C
    Temp. Coefficient of Span 0.025% FS /°C
    Input Resistance N/A
    Output Resistance No
    Insulation resistance 100MΩ @ 50VDC
    Zero offset N/A

    High-Temperature Media (-40°C up to 125°C)
    Pressure Measurement Range of -1 to 1000bar
    Separate Output for Pressure and Temperature
    Compact and Rugged Model Wide Range of Media Compatibility
    Low Static and Thermal Errors
    Reverse polarity and transient current protected

    Petro-chemical industries
    Chemical industries
    Food industries
    Aerospace industries
    Research applications
    Power plants
