    • Technical Specification
    • Features
    • Applications
    TechnologyStrain Gauge

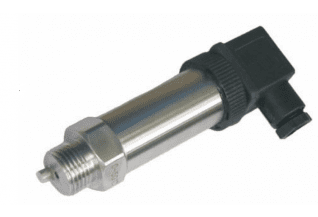

    TypePressure Transmitter
    Standard Measurement Range (bar)25, 50, 100, 200, 400
    Purpose and ApplicationHigh Temperature, Pressure – Temperature
    Accuracy (combined LRH)0.25% FS, 0.5% FS
    Output Signal4-20mA, 0-5VDC, 1-5VDC, Others
    Pressure ReferenceSealed to 1 bar
    Process ConnectionG1/2(½” BSPP male), R1/4(¼” BSPT male) , NPT1/4(¼” NPT male) , M20x1.5
    Electric Connection3m cable, DIN 43650 connector
    Protection LevelIP65, IP67 (with cable connection)
    Overload Rating150%
    Long Term Stability<0.2% FS/year
    Diaphragm MaterialStainless Steel 316L
    Compensated Temp. Range-10 to 70°C
    Operating Temp. Range-20 to +85°C
    Temp. Coefficient of Zero0.025% FS /°C
    Temp. Coefficient of Span0.025% FS /°C
    Input ResistanceNo
    Output ResistanceNo
    Insulation resistance500MΩ @ 100VDC
    Zero offsetNo

    Pressure Measurement range of 10 to 400 bar
    High Temperature range of 0°C up to 140°C
    Externally welded temperature sensor(PT100)
    Separate Output for Pressure and Temperature
    Accurate pressure and temperature measurement

    Petro-chemical industries
    Chemical industries
    Food industries
    Aerospace industries
    Research applications
    Power plants
