    MLQ61

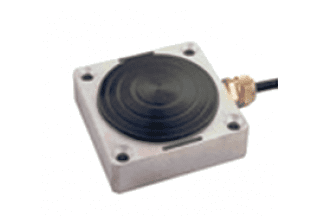

    Brake Pedal Load Cell

    MLQ61 series with Aluminium alloy material body is a rugged and accurate brake pedal load cell designed to measure applied compression load on pedals in braking systems. This load cell offers great flexibility and reliability for a wide range of customers with highly competitive pricing.
    MLQ61 is available in standard ranges from 50kg to 250kg with an output of mV/V. The standard accuracy is 0.5% FS, while the accuracy of 0.25% and 0.1% are available on request. The robust construction of MLQ61 with its high performance makes it ideal for demanding long term applications.
    Get A Quote
    • Technical Specification
    • Features
    • Applications
    Standard Measurement Range 50kg, 100kg, 150kg, 200kg, 250kg
    Output Signal 1-1.5 mV/V, 4-20mA, 0-5VDC, 0-10VDC
    Accuracy (combined LRH) 0.1% FS, 0.25% FS, 0.5% FS
    Creep ±0.1% FS / 30min
    Overload Rating 150% FS
    Zero unbalance ±1% FS
    Protection Level IP62
    Compensated Temp. Range -10 to 40°C
    Operating Temp. Range -20 to +60°C
    Temp. Coefficient of Zero 0.05% FS /10°C
    Temp. Coefficient of Span 0.05% FS /10°C
    Input Resistance 750±10Ω
    Output Resistance 700±10Ω
    Insulation resistance ≥5000MΩ @ 50VDC
    Electric Connection 3m cable

    High Measuring Accuracy
    Load Measurement Range of 50 – 250kg
    Compact and Rugged Model
    Rubber Sealing Cover

    Brake pedal monitoring and testing in:
    1) Automotive
    2) Rail
    3) Agriculture
    4)Mining
    5)Research and Sports industries.
