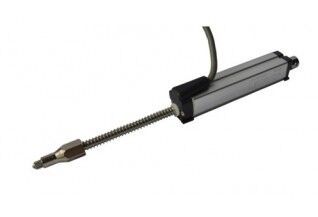

MDP42 is a spring loaded rugged potentiometer based displacement sensor suitable for static measurement in harsh environments. This compact displacement sensor offers great flexibility and reliability for a wide range of applications with highly competitive pricing.
MDP42 is available in measuring ranges from 10 to 100mm with a Voltage output, relative to supplied input voltage. The spring loaded potentiometer shaft is running in a precision bearing and this potentiometer is suitable for accurate industrial displacement measurements. Standard Nonlinearity of this sensor is ±0.1% FS.
The robust construction of MDP42 with its high performance makes it ideal for demanding long term applications.
Get A Quote| Standard Measurement Range (mm) | 75, 10, 25, 50, 100, Any other non-standard range |
|---|---|
| Accuracy (combined LRH) | 0.1% FS |
| Output Signal | Potentiometric (Nearly same as input voltage) |
| Protection Level | IP65 |
| Operating Temp. Range | -60 to +100°C |
| Temp. Coefficient of Span | 1.5ppm FS/°C |
| Temp. Coefficient of Zero | 1.5ppm FS/°C |
| Electric Connection | 1m cable, 3m cable, 5m cable, Pin connection |
