Technology | Strain Gauge |
---|---|

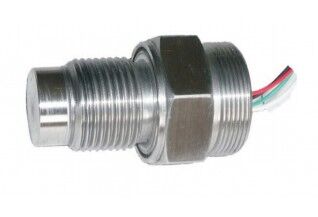

Type | OEM Pressure Sensing Element |
Standard Measurement Range (bar) | 700, 800, 1000, 1500 |
Purpose and Application | General Purpose, Flush Diaphragm, Compact Size / Miniature, High Pressure Range |
Accuracy (combined LRH) | 0.1% FS, 0.25% FS, 0.5% FS |
Output Signal | 1mV/V, 1.5mV/V, 2mV/V |
Pressure Reference | Sealed to 1 bar |
Process Connection | M22x1.5 (male), R1/2(½”BSPT male), G1/2(½” BSPP male), Others |
Electric Connection | 4-wire |
Protection Level | No |
Overload Rating | 150% |
Long Term Stability | No |
Diaphragm Material | Stainless Steel |
Compensated Temp. Range | -10 to 60°C |
Operating Temp. Range | -20 to +70°C |
Temp. Coefficient of Zero | 0.02% FS /°C |
Temp. Coefficient of Span | 0.02% FS /°C |
Input Resistance | 380±5Ω, 1000±5Ω |
Output Resistance | 350±5Ω/ 1000±15Ω |
Insulation resistance | 100MΩ @ 50VDC |
Zero offset | ≤ ±3mV |
