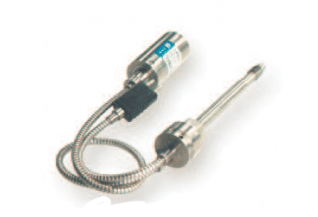

    Melt Pressure and Temperature Transmitter

    MRQ24 is strain gauge-based melt pressure and temperature transmitter with stainless steel body designed to be used in high temperature (up to 400°C) and harsh environments.

    Providing thermal isolation to electronic circuits enables MRQ24 to measure both pressure and temperature accurately. Internal 80%FS shunt calibration offers zero and span adjustment of the sensor.

    MRQ24 is available in pressure ranges from 50 to 1000bar with an output of mA or V. Mercury free transmitter filled with special oil for the food industry is available on request. Option for Hastelloy diaphragm is available on request. While the standard Precision is 1%FS, you can optionally get a precision of 0.5%FS and 0.25%FS.The option of having Ti-Ni coated diaphragm is available on request to withstand against corrosion, abrasion and high temperature.

    Get A Quote
    • Technical Specification
    • Features
    • Applications
    Technology Strain Gauge
    Type Pressure Transmitter
    Standard Measurement Range (bar) 50, 100, 200, 400, 600, 800, 1000
    Purpose and Application High Temperature, Pressure – Temperature, High Pressure Range
    Accuracy (combined LRH) 0.25% FS, 0.5% FS, 1% FS
    Output Signal 4-20mA, 0-5VDC, 0-10VDC, 1-5VDC, 3mv/V, HART
    Pressure Reference SG: Sealed Gauge (0 at 1bar)
    Process Connection G1/4(¼” BSPP male), G1/2(½” BSPP male), R1/4(¼” BSPT male) , NPT1/4(¼” NPT male)
    Electric Connection 6 pin connection, Others
    Protection Level No
    Overload Rating 200%
    Long Term Stability <0.2% FS/year
    Diaphragm Material Stainless Steel 316L, Stainless Steel , Hastelloy, Titanium, Tantalum, Other
    Compensated Temp. Range 0 to 70°C
    Operating Temp. Range +400°C
    Temp. Coefficient of Zero 0.05% FS /10°C
    Temp. Coefficient of Span 0.05% FS /10°C
    Input Resistance N/A
    Output Resistance N/A
    Insulation resistance 100MΩ @ 50VDC
    Zero offset N/A

    High Measuring Accuracy
    Pressure Measurement Range of 50 to 1000bar
    Compact and Rugged Model
    Stainless steel construction
    Optional Hastelloy-C Diaphragm
    Zero and span adjustable

    Extrude machines
    Rubber injection machines
    Plastic moulding machines
    High temperature process lines
    Food and Energy
